Rolling tegirmon uchun rulo bo'yinli podshipniklar

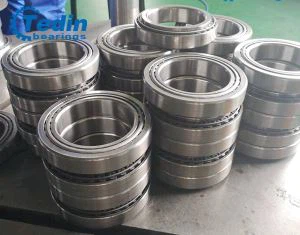

Prokat tegirmonlari uchun podshipniklar og'ir yuklarga va yuqori tezlikda aylanishlarga, shuningdek, juda og'ir ish sharoitlariga bardosh berishi kerak. Turli sohalarda ular har jihatdan og'ir sharoitlarda qo'llaniladi. Tedin issiq lenta tegirmonlari va sovuq lenta tegirmonlari uchun ikki qatorli konusli rulman va to'rt qatorli konusli rulmanlar ishlab chiqaradi.
Rulman turi: Ikki qatorli konusli rulman
Tur kodi: KOYO 45TS725715
Ilova: Issiq lenta tegirmonlari va sovuq lenta tegirmonlarining rulonli rulmanlari
Olchamlari: ID 360/ OD 570/ H 148 mm
Yuklanish darajasi: Cr= 2380kN, Kor= 4730kN
Eslatma: uzuklarni almashtirib bo'lmaydi. O'rnatish paytida halqalar har tomondan ko'rsatilgan harfga mos kelishi kerak.
Rulman belgilari:
Rulman raqamiga qo'shimcha ravishda rulman seriya raqami (kombinatsiya raqami) va qator raqami ham rulmanda ko'rsatiladi. Ushbu raqamlarga muvofiq rulmanni yig'ing. Ushbu raqamlarni xato qilish va rulmanni yig'ish rulmanning ishdan chiqishiga olib kelishi mumkin.
Ikki qatorli konusli rulmanlar, asosan, issiq / sovuq lenta tegirmonlarining rulonli bo'yinli rulmanlari uchun ishlatiladi, odatda tashqi halqali bo'shliqsiz:
Tedin prokat tegirmonlari uchun katta o'lchamli ikki qatorli konusli rulmanlar ishlab chiqarishda 15 yillik tajribaga ega. Bizda ISO 9001:2015 standartiga muvofiq sifatni nazorat qilishning to'liq tizimi mavjud. So'rov uchun biz bilan bog'lanish uchun xush kelibsiz!
Issiq teglar: Rolling tegirmoni uchun rulo bo'yinli podshipniklar, Xitoy prokat tegirmoni uchun rulo bo'yinli podshipniklar, prokat tegirmoni ishlab chiqaruvchilari uchun rulo bo'yinli podshipniklar, prokat fabrikasi uchun rulo bo'yinli podshipniklar, prokat uchun moslashtirilgan rulo bo'yinli podshipniklar, prokat tegirmoni uchun rulo bo'yinli podshipniklar sotiladi
| Asosiy o'lchamlar | Asosiy yuk ko'rsatkichlari | Tezlikni cheklash | Vt | Yo'q. | ||||||
| d | D | T | B | C | Cr | Kor | Yog ' | Yog ' | ||
| mm | KN | r/min | kg | |||||||
| 92.075 | 152.4 | 82.55 | 63.5 | 36.322 | 297 | 547 | 1800 | 2400 | 5.74 | 598/592DC |
| 96.938 | 188.912 | 107.59 | 31.75 | 46.038 | 466 | 702 | 1800 | 2400 | 11.6 | 90381/90744K |
| 101.6 | 168.275 | 92075 | 69.85 | 41.275 | 357 | 648 | 1800 | 2400 | 8.18 | 687/672D |
| 101.6 | 190.5 | 127 | 101.6 | 57.5 | 606 | 1020 | 1800 | 2400 | 15.6 | 861/854D |
| 127.792 | 228.6 | 115.888 | 84.138 | 49.428 | 703 | 1142 | 1400 | 1900 | 18.9 | HM926749/HM926710D |
| 130 | 280 | 144 | 44 | 66 | 1086 | 1649 | 1400 | 1900 | 40.4 | 31326X.K11.A160.200 |
| 140 | 200 | 93.665 | 73.025 | 42 | 422 | 917 | 1300 | 1700 | 9.2 | 442210 |
| 300 | 154 | 47 | 70 | 1244 | 1910 | 1300 | 1700 | 51 | 31328X.K11.A160.200 | |
| 146.05 | 254 | 149.225 | 111.125 | 66.675 | 967 | 1887 | 1300 | 1700 | 28 | 99575/99102 CD |
| 150 | 320 | 164 | 50 | 75 | 1414 | 2196 | 1200 | 1500 | 59.6 | 31330X.K11.A180.230 |
| 165.1 | 225.425 | 95.25 | 69.85 | 47.625 | 440 | 1120 | 1150 | 1400 | 10.5 | NA46790-SW/46720CD |
| 173 | 350 | 155 | 58 | 155 | 1500 | 2550 | 1000 | 1300 | 70.7 | 173KH350 plyus K |
| 177.8 | 288.925 | 123.825 | 47.625 | 123.825 | 1085 | 2050 | 940 | 1300 | 32 | HM237546DW/HM237510 |
| 203.2 | 276.225 | 95.25 | 73.025 | 47.625 | 590 | 1350 | 940 | 1300 | 14.9 | LM241149NW/LM241110D |
| 292.1 | 109.538 | 84.138 | 49.212 | 825 | 1710 | 940 | 1300 | 21.9 | M541349/M541310D | |
| 220 | 340 | 90 | 80 | 39 000 | 725 | 1478 | 840 | 1100 | 30.8 | 220KBE30 plus L |
| 249.25 | 38l.000 | 171.45 | 127 | 76.2 | 1407 | 3066 | 690 | 920 | 63.4 | EE126098/126151CD |
| 253.975 | 347.662 | 101.6 | 69.85 | 50.8 | 775 | 1650 | 630 | 840 | 23.8 | LM249747NW/LM249710D |
| 279.4 | 457.2 | 244.475 | 106.363 | 244475 | 3670 | 8440 | 580 | 770 | 181 | HH255149D/HH255110 |
| 457.2 | 244.48 | 94 | 244.48 | 2743 | 5863 | 580 | 770 | 166.5 | 45T564624T | |
| 303.212 | 495.3 | 263.525 | 114.3 | 263.525 | 4023 | 9363 | 500 | 660 | 223.8 | HH258249TD/HH258210 |
| 304.8 | 393.7 | 107.95 | 82.55 | 53.975 | 905 | 2260 | 500 | 660 | 30.6 | L357049NW/LM961511D |
| 305.07 | 500 | 200 | 60 | 200 | 2100 | 4300 | 500 | 660 | 147.7 | 332169A |
| 342.9 | 457.098 | 142.875 | 10l.600 | 63.5 | 1254 | 3411 | 480 | 630 | 60.4 | LM961548/LM961511D |
| 355.6 | 444.5 | 136.525 | 111.125 | 60.325 | 1133 | 3538 | 420 | 560 | 44.6 | L163149/L163110CD |
| 501.65 | 146.05 | 107.95 | 73.025 | 1762 | 3853 | 410 | 540 | 88 | NA231400/231976CD | |
| 368.249 | 523. 875 | 214.312 | 169.862 | 101.6 | 2714 | 6903 | 410 | 540 | 143 | HM265049/HM265010D |
| 368.3 | 523. 875 | 185.738 | 79.375 | 185.738 | 3165 | 7555 | 410 | 540 | 134.3 | HM265049TDS/HM265010S |
| 447.675 | 635 | 223.838 | 95.25 | 223.838 | 4317 | 11416 | 320 | 440 | 239 | M270749ADW/M270710 |
| 498.475 | 634.873 | 177.8 | 142.875 | 80.962 | 2356 | 6893 | 320 | 440 | 132.2 | EE243196/243251CD |
| 600 | 870 | 250 | 200 | 111 | 4920 | 11950 | 250 | 330 | 467 | 600KBE030 plus L/P6 |
